| User Interface |

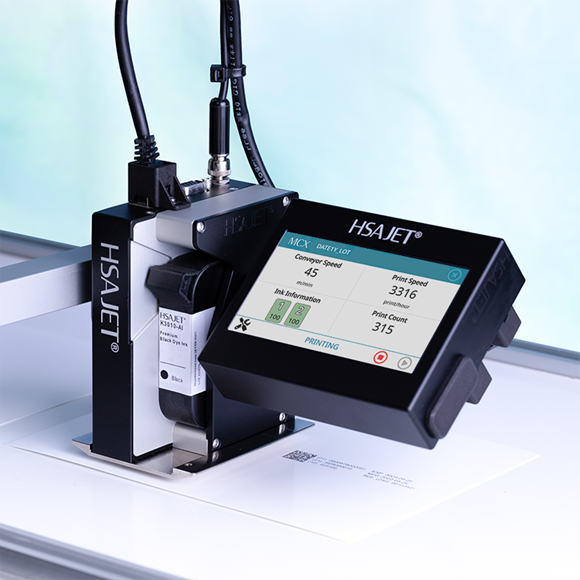

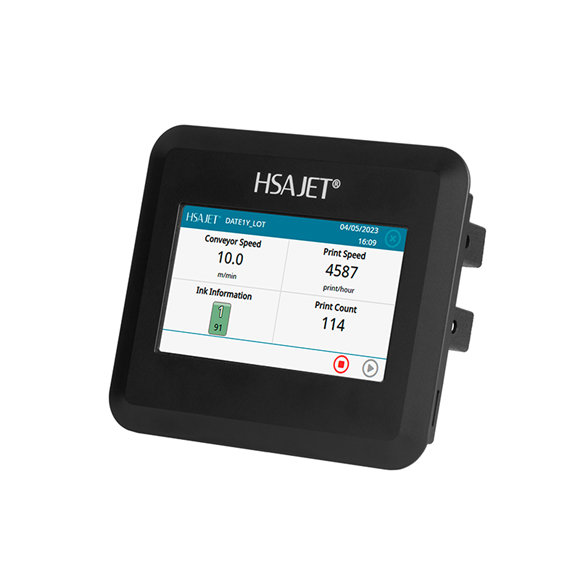

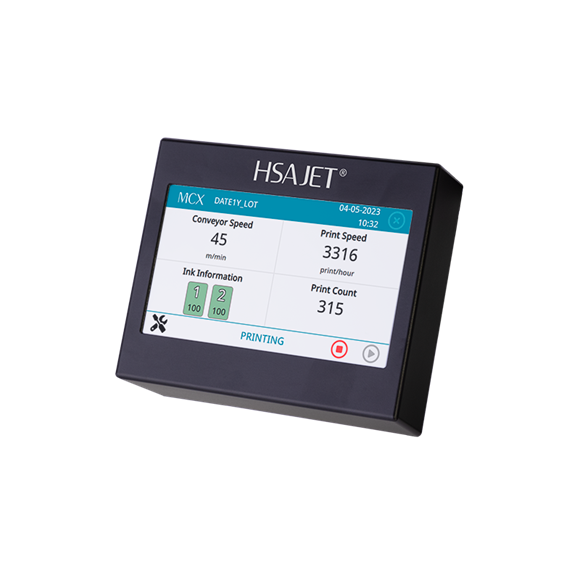

MCX 4.3″ Touch Controller |
| Printheads |

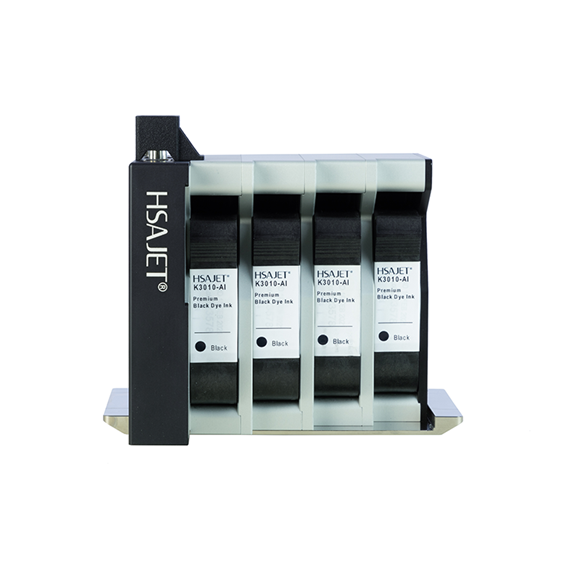

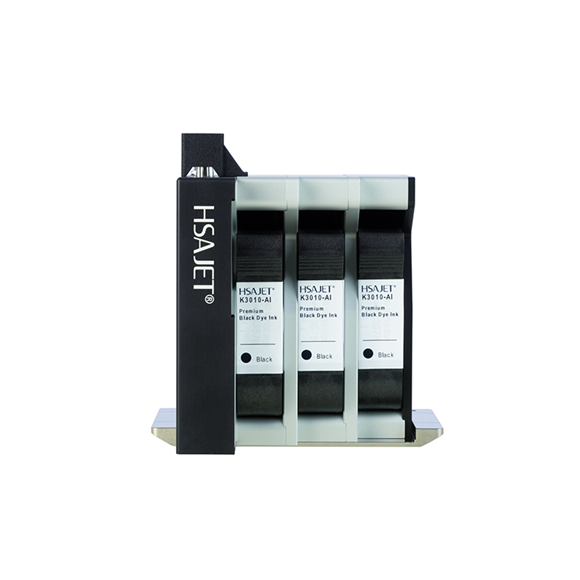

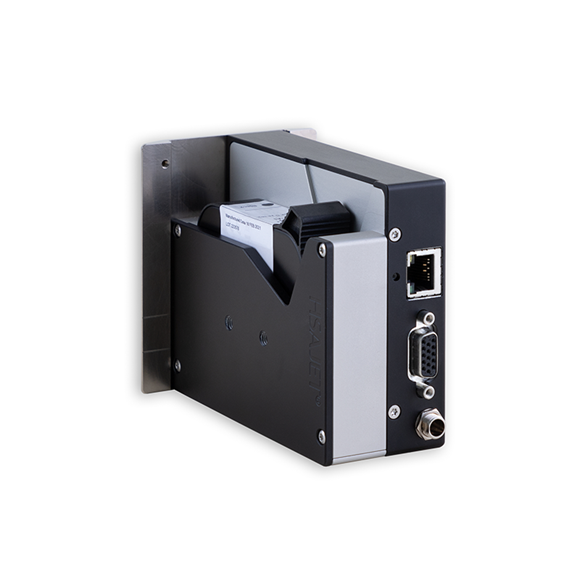

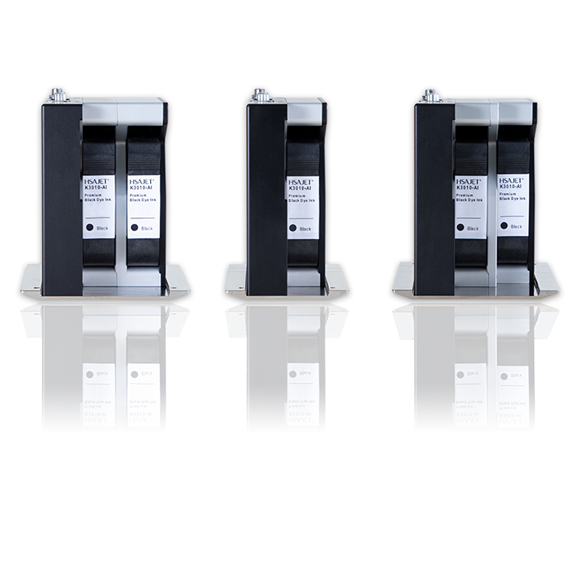

MCX Compact Printers (0.5” to 2.0” / 1 – 4 pens)
|
|
Design Software
|
|
|
Technology
|
HP TIJ 2.5 with smart card technology
|
|
Print Positions
|
One print position per print system
|
|
Print Height
|
Up to 50.8 mm (2”) (depending on printheads – 12.7 mm per pen) |
|
Print Distance
|
0.5-5.0 mm dependent on ink and speed (nozzle to print surface) |
| Print Distance |
0.5–5.0 mm, depending on ink and speed (nozzle to print surface) |
| Print Speed |
182 m/min @ 300 x 300 dpi (Higher speeds can be achieved at lower dpi) |
|
Layout Options
|
Alphanumeric texts, all date formats, barcodes, incl. 2D codes, QR codes and GS1 Datamatrix, graphics ,etc. |
| Resolution |
Horizontal: 100–2400 dpi (variable); Vertical: 300 or 600 dpi |
| Languages |
Unlimited language support; menus, print data, keyboard input, and date formatting in all languages |
|
Resolution
|
Horizontal: 100-2400 dpi (variable). Vertical: 300 or 600 dpi |
| Languages |
Unlimited language support. Menus, print data, keyboard input and date formatting possible in all languages |
|
Smart Card Ink Technology
|
Automatic detection of ink cartridge, auto-adjustment of ink parameters, monitoring of ink level |
|
Flight Mode
|
Fine-tuning of parameters and print alignment during production |
| Remote Control |
Protocol for remote control
|
|
Encoder Rollback
|
Detection of print position enabling restart of print in correct position |
|
Out-of-the-Box Stitching
|
Printer is pre-stitched and can be fine-tuned from controller |
|
Housing
|
Anodised aluminium, black and natural, stainless steel |
| Dimensions & Weight (0.5″ Printhead) |
92 x 116.5 x 48 mm | 0.49 kg
|
| Dimensions & Weight (1.0″ Printhead) |
121 x 73.2 x 92 mm | 0.62 kg
|
Dimensions & Weight (1.5” Printer)
|
121 x 116.6 x 124.8 mm | 1.02 kg
|
| Dimensions & Weight (2.0” Printer) |
121 x 129 x 150.7 mm | 1.26 kg
|
| Compliance |
CE, UKCA |
| Country of Origin |
Denmark |
