Infinity MkII 88 mm Controllers with InkDraw 3 and PDF Tool
Infinity Controllers are powerful industrial printer controllers installed with the InkDraw 3 software, which is one of the most versatile software packages for inkjet printing available on the market. Among other features, the Infinity printers offer database connectivity for print from a range of databases, as well as direct print from PDF files.
The user-friendly InkDraw 3 software can be used for different productions and industries and meets the demands within product identification, as well as mailing, postal, and commercial printing.
Infinity Bulk Systems for High Volume Ink Supply
The Infinity Bulk system is ideal for high-speed and high-volume printing, ensuring stable, high-volume ink supply to the printheads. 775 ml bulk ink cartridges are inserted in the Infinity Bulk system to supply ink to the Infinity printheads.

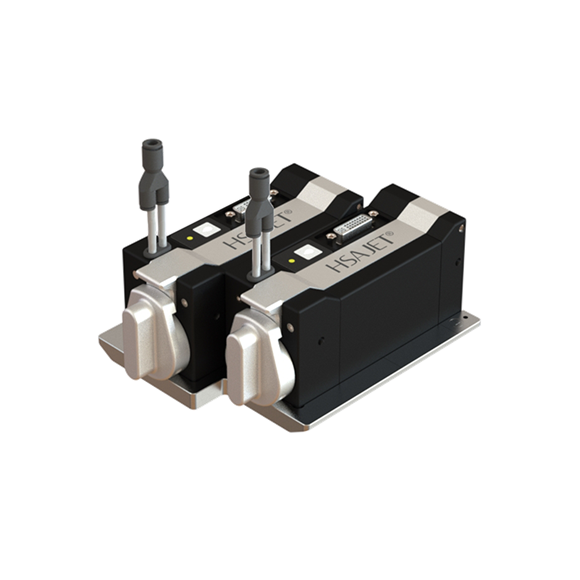

Expandable system with Infinity Printheads – up to 88 mm printheight or print on multiple sides
The Infinity printheads are used with HP 22 mm print cartridges Smart Servicing technology. Infinity’s Smart Servicing technology prevents nozzles from drying, ensuring crisp, clean print results even after extended idle periods.
Each printead has a locked latch for secure installation of the print cartridge and a purge button on printhead for easy service.
The Infinity 88 mm solution can control print heights of up to 88 mm, either as one single 88 mm Infinity printhead or in any combination of up to four individual Infinity printheads for a maximum total print height of 88 mm (max four pens of 22 mm each) for print on multiple sides simultaneously.
With this solution, you can easily combine various types of data in one layout, such as:
- All types of barcodes (1D and 2D)
- Alphanumeric text
- Date and time stamps
- Addresses
- Batch and lot numbers
- Counters and shift codes
- Graphics
Key features of the HSAJET® Infinity MkII Solution:
- High-resolution printing of images at up to 1200 dpi x 1200 dpi
- High-speed printing of up to 488 m/min @ 1200×150 dpi
- User-friendly software for effortless creation and management of print designs
- Practically maintenance-free operation, reducing the risk of handling errors
- Smart Servicing technology ensuring clean, crisp print every time
- Increased uptime with the HSAJET® Infinity bulk system for high-volume printing
- Fast and easy replacement of the 775 ml bulk ink cartridge
Experience the perfect blend of speed, quality, and reliability with the HSAJET® Infinity Solution—your ideal partner for high-capacity coding and marking printing applications.
| Item | Description |
|---|---|
| Controller | HSAJET Infinity Controller, 88 MkII |
| Printheads | HSAJET Infinity Printheads: 22 mm, 44 mm, 66 mm and 88 mm |
| Bulk System | HSAJET Infinity Single Bulk system MkII |
| Design Software | InkDraw 3, incl. Event and PDF Tool (Optional extensions: Integration Tool, Mail Tool) |
| Technology | HP TIJ 4.0 with Smart Servicing Technology |
| Print Height | Up to 88 mm – 22 mm per pen |
| Print Distance | 1 – 5 mm (nozzle to print surface), dependent on speed |
| Resolution | Up to 1200 x 1200 DPI |
| Print Speed | Up to 488 m/min @ 1200 x 150 dpi |
| Print Direction | Vertical and horizontal firing positioning |
| Variable Print Data | 1D & 2D codes, alphanumeric text, numbers, counters, time & date, shift codes, hi-res graphics, addresses etc |
| Print from Database | .xlsx, .csv, .txt and .pdf |
| Ink Supply | Aqueous inks supplied in HSAJET® and HP Bulk Ink Cartridge (775 ml) |
| Replaceable Cartridge | HSAJET® and HP 22mm Smart Servicing Print Cartridges |
| Cartridge Throughput | 5000 ml ink (Average ink throughput before the print cartridge needs to be replaced. Application dependent) |
| Housing | Printheads: anodised aluminium, black and natural. Controllers: stainless steel. |
| Voltage | 100-240V AC (internal power supply) |
