HSAJET® Infinity MkII, 44 mm

Infinity 44 mm Controllers with InkDraw 3 and PDF Tool

Infinity Controllers are powerful industrial printer controllers installed with the InkDraw 3 software, which is one of the most versatile software packages for inkjet printing available on the market. Among other features, the Infinity printers offer database connectivity for print from a range of databases, as well as direct print from PDF files.The user-friendly InkDraw 3 software can be used for different productions and industries and meets the demands within product identification, as well as mailing, postal, and commercial printing.

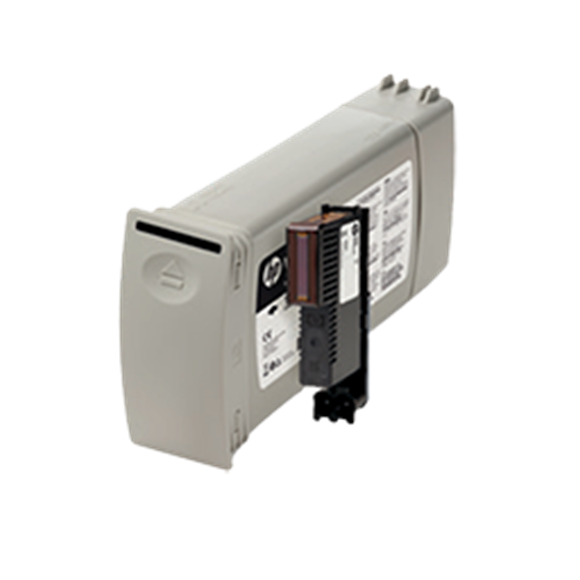

Infinity Bulk Systems for High Volume Ink Supply

The Infinity Bulk system is ideal for high-speed and high-volume printing, ensuring stable, high-volume ink supply to the printheads. 775 ml bulk ink cartridges are inserted in the Infinity Bulk system to supply ink to the Infinity printheads.

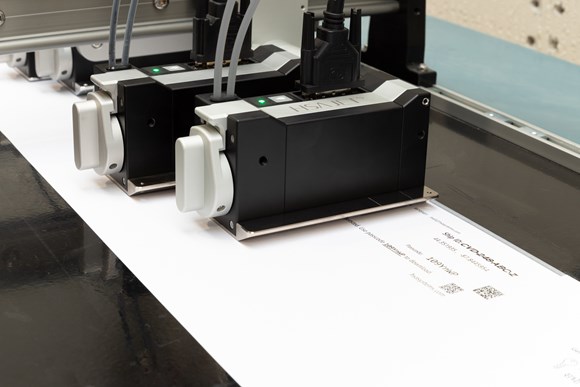

Up to 44 mm print height with Infinity Printheads

The Infinity printheads are used with HP 22 mm print cartridges with Smart Servicing Technology. Infinity’s Smart Servicing technology prevents nozzles from drying, ensuring crisp, clean print results even after extended idle periods.

Each printhead has a locked latch for secure installation of the print cartridge and a purge button on the printhead for easy service.

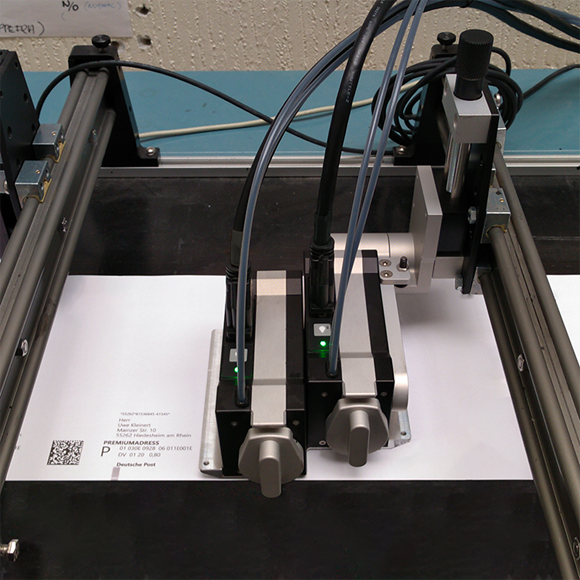

The Infinity 44 mm solution allows you to print with a print height of up to 44 mm, either as a single 44 mm Infinity printhead or as two individual 22 mm printheads for print on multiple sides simultaneously. With this solution, you can easily combine various types of data in one layout, such as:

All types of barcodes (1D and 2D)
Alphanumeric text
Date and time stamps
Addresses
Batch and lot numbers
Counters and shift codes
Graphics

Key features of the HSAJET® Infinity MkII Solution:

High-resolution printing of images at up to 1200 dpi x 1200 dpi
High-speed printing of up to 488 m/min @ 1200×150 dpi
User-friendly software for effortless creation and management of print designs
Practically maintenance-free operation, reducing the risk of handling errors
Smart Servicing technology ensuring clean, crisp print every time
Increased uptime with the HSAJET® Infinity bulk system for high-volume printing
Fast and easy replacement of the 775 ml bulk ink cartridge

Experience the perfect blend of speed, quality, and reliability with the HSAJET® Infinity Solution—your ideal partner for high-capacity coding and marking printing applications.

Video
Technical Details

Video

Technical Details

Item	Description
Controller	HSAJET Infinity Controller, 44 MkII
Printheads	HSAJET Infinity Printheads: 22 mm and 44 mm
Bulk System	HSAJET Infinity Single Bulk system MkII
Design Software	InkDraw 3, incl. Event and PDF Tool (Optional extensions: Integration Tool, Mail Tool)
Technology	HP TIJ 4.0 with Smart Servicing Technology
Print Height	Up to 44 mm – 22 mm per pen
Print Distance	1 – 5 mm (nozzle to print surface), dependent on speed
Resolution	Up to 1200 x 1200 DPI
Print Speed	Up to 488 m/min @ 1200 x 150 dpi
Print Direction	Vertical and horizontal firing positioning
Variable Print Data	1D & 2D codes, alphanumeric text, numbers, counters, time & date, shift codes, hi-res graphics, addresses etc
Print from Database	.xlsx, .csv, .txt and .pdf
Ink Supply	Aqueous inks supplied in HSAJET® and HP Bulk Ink Cartridge (775 ml)
Replaceable Cartridge	HSAJET® and HP 22 mm Smart Servicing Print Cartridges
Cartridge Throughput	5000 ml ink (Average ink throughput before the print cartridge needs to be replaced. Application dependent)
